| SLiC-700E | ||
| Function | 2-in-1 (CCT/Single Colour) | Single Colour |
| Rated max power | 15W | 15W |
| Input power | AC 180-240V | AC 180-240V |
| Power Factor | >0.9 at rated load | >0.9 at rated load |
| Efficiency | >85% at full load | >85% at full load |
| Output voltage | 0-50V DC | 0-50V DC |
| Rated output current (mA) | 200, 250, 300, 350, 400, 500, 600, 700 | 200, 250, 300, 350, 400, 500, 600, 700 |
| Fade time | 0-25.5 seconds adjustable | 0-25.5 seconds adjustable |
| Output current trim | 100% to 50% with 5% step | 100% to 50% with 5% step |
| Dimming method | Full DC dimming | Full DC dimming |
| Standby power consumption | <0.5W | <0.5W |
| Working temperature | -20~50°C | -20~50°C |
| Case temperature | Max 90°C | Max 90°C |
| Dimension (WHL) | 31.5 x 24 x 125.5mm | 31.5 x 24 x 125.5mm |
NEW!
SLiC Casambi Driver
SLiC-700E

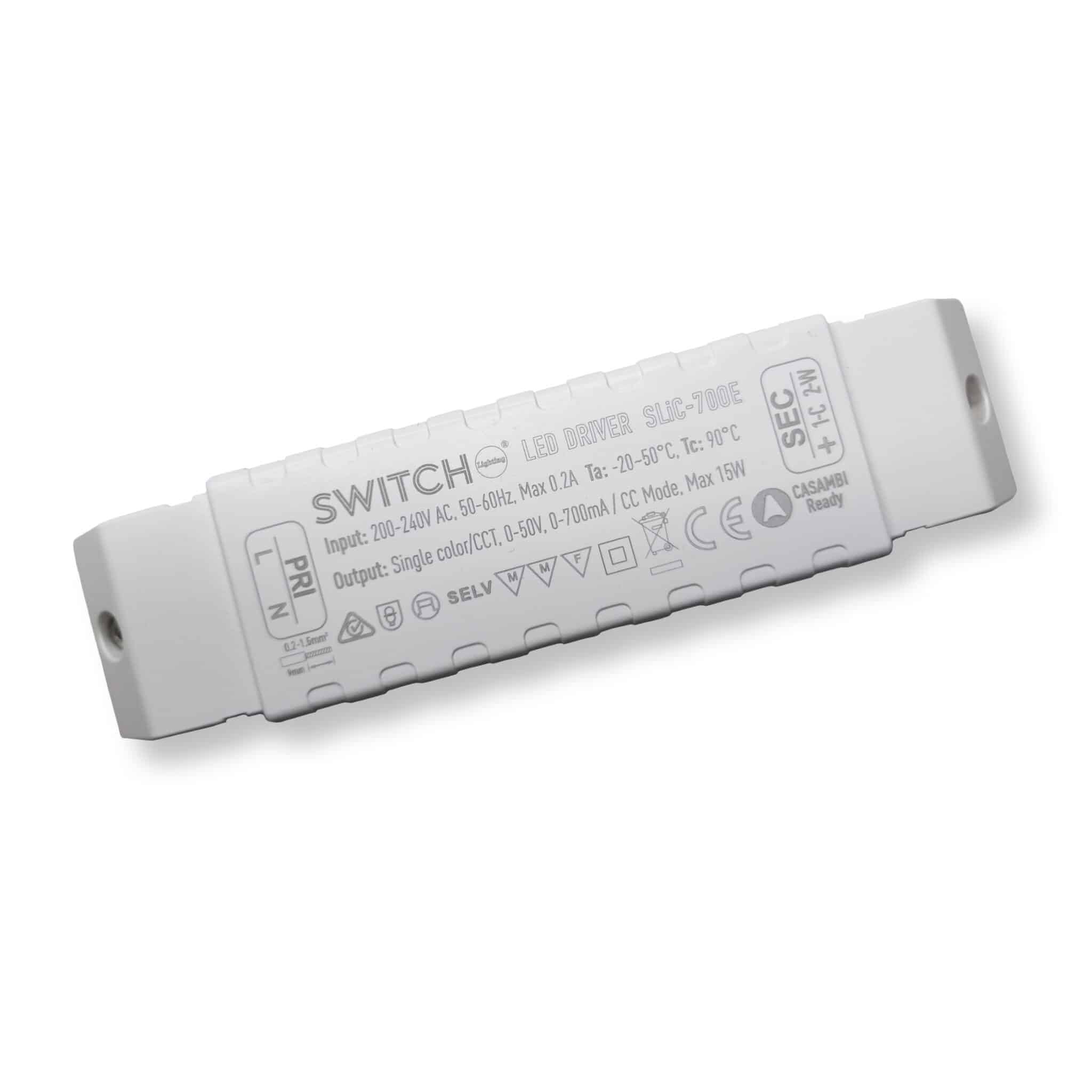

The SLiC-700E Casambi Driver is a 15W programmable constant current LED driver for tunable white and single colour. It is Casambi ready, and all features are programmable.
- Enable smart lighting control of individual luminaires
- Lighting automation control for Tunable White and other constant current LED luminaires
- Select Tunable white mA profiles in the APP
- Select single colour mA profiles in the APP
- Advanced full DC dimming is 100% flicker free throughout the whole dimming range
- Stable dimming from 0.4% to 100%
- Soft start function – set the time for dimming, start up and turn off
- Perfect for new or retrofit installations – no additional wiring required
- Control of lighting scenes: for example: a seasonally adjusted circadian rhythm lighting scene, a movie viewing lighting scene, or any smart lighting scene setting you desire
- Simple to install and commission using the Casambi app for Android or iOS
- Easy to control with regular push-button momentary interfaces (when enabled with a SLiC Push-button Interface) a mobile device or a Casambi controller
- Compatible with any Casambi-enabled product (www.casambi.com)
- The max output voltage varies with the rated output current. See Instruction Sheet in the Downloads to view the max output voltage and power with different current settings.
- 5 year warranty
Define Your Product
Select the options below to define your product
Selected product: SLiC Casambi Driver
SLiC-700E
Product Code: SLiC-700E
| Driver Type | SLiC Casambi |
|---|
