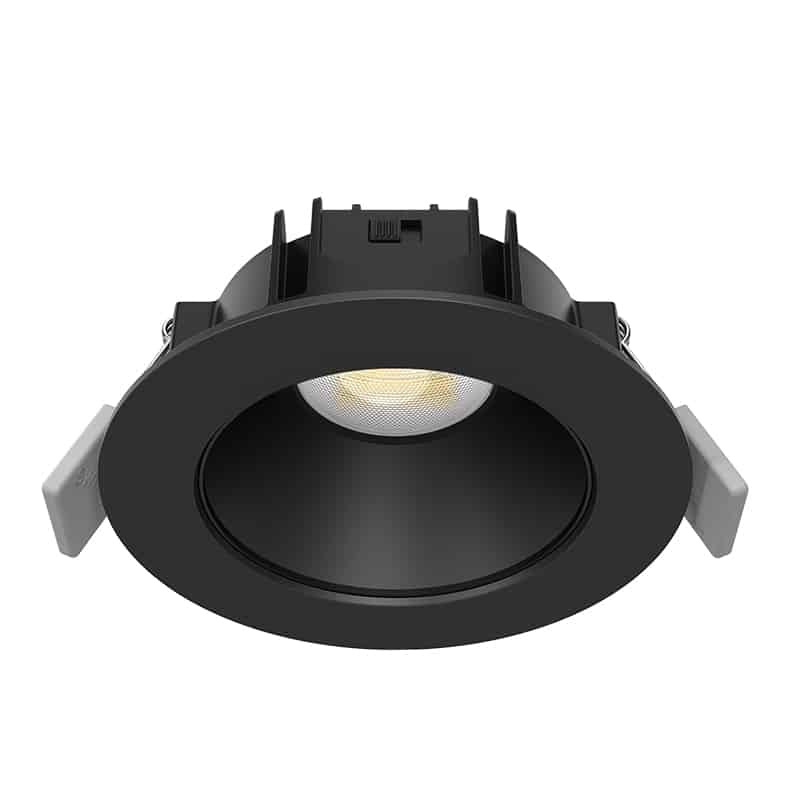

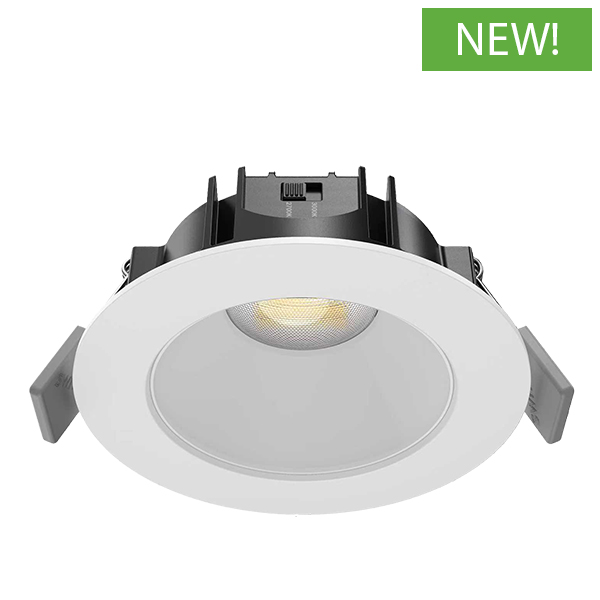

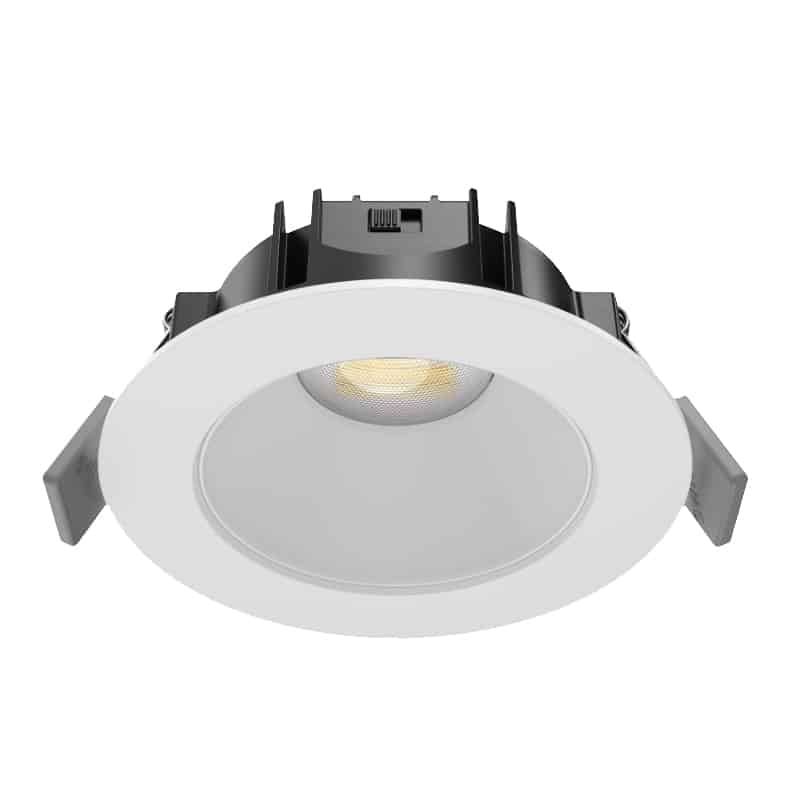

SLED314F
Low Glare Downlight

Medium beam angle

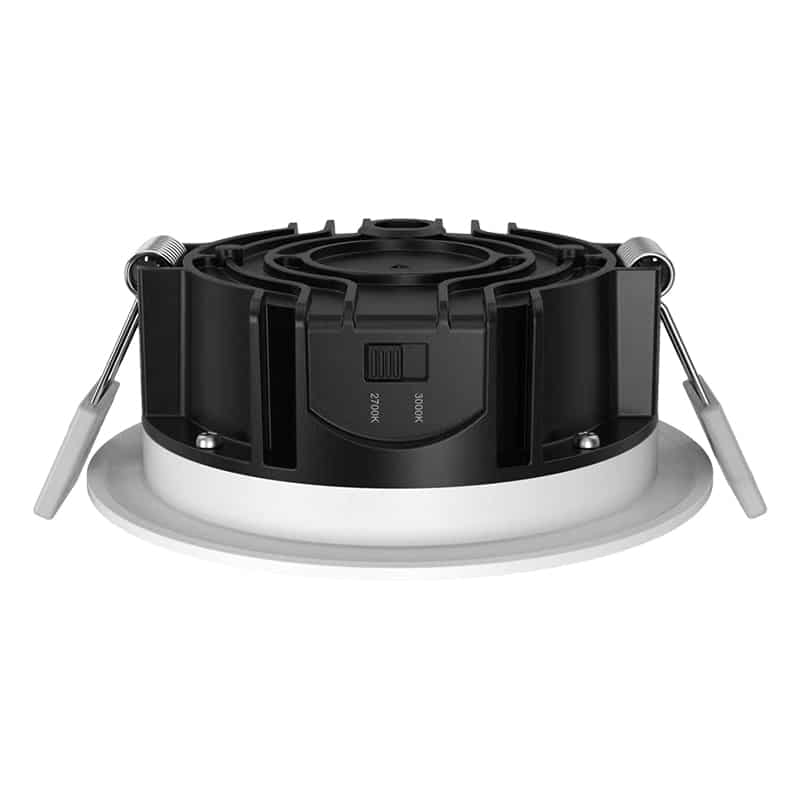

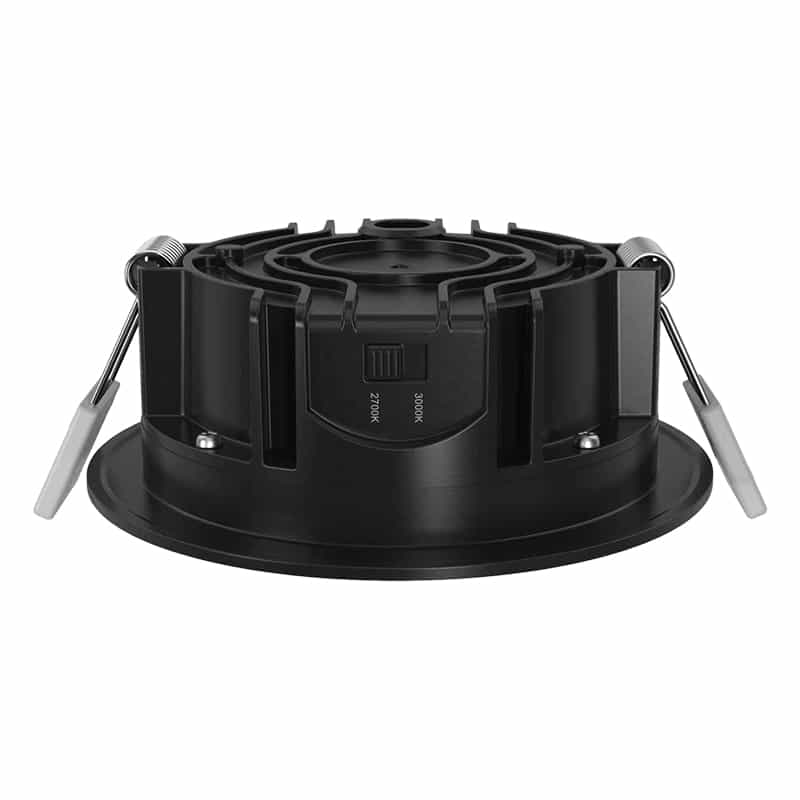

Selectable CCT 2700K / 3000K
Ø86 – 89mm cut-out
>870 lumen
CRI 90
Low glare diffusion
Quick connect flicker free dimming driver
Halogen retrofit
Ø101 x 38.5mm
IP54 front

Selectable CCT – switch to 2700K in bedrooms to minimise blue light and maximise sleep; 2700K or 3000K for living rooms.

Product specifications below are given for 3000K.

Insulation coverable (IC-F / IC-4)

Define Your Product

Select the options below to define your product
Please select one option from each line.
Options will remain to enable product selection.
All lines must be selected to show a product.

Light Level and Beam Generator

Usage instructions

Use the below graphic to assist in visualising how the selected luminaire will effect your design space

Select the options to the left to define your product
Select the room height in the text box at bottom of graphic
Move the slider on the left of the graphic to position the desired lux level height, i.e. for a desk at 700mm and a room height of 2400mm move the slider to 2400-700 = 1700mm
Select the options on the left and watch the lux levels change depending on diffuser, beam angle, CCT and driver
Try various combinations of the above to achieve the desired lux levels and beam spread
When happy with the luminaire selected, copy and paste the full product code from beneath the graphic into your specification
