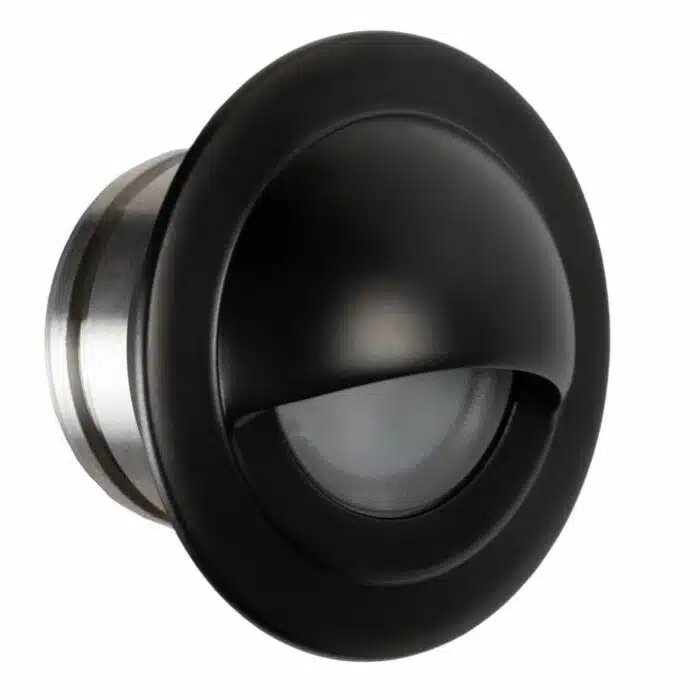

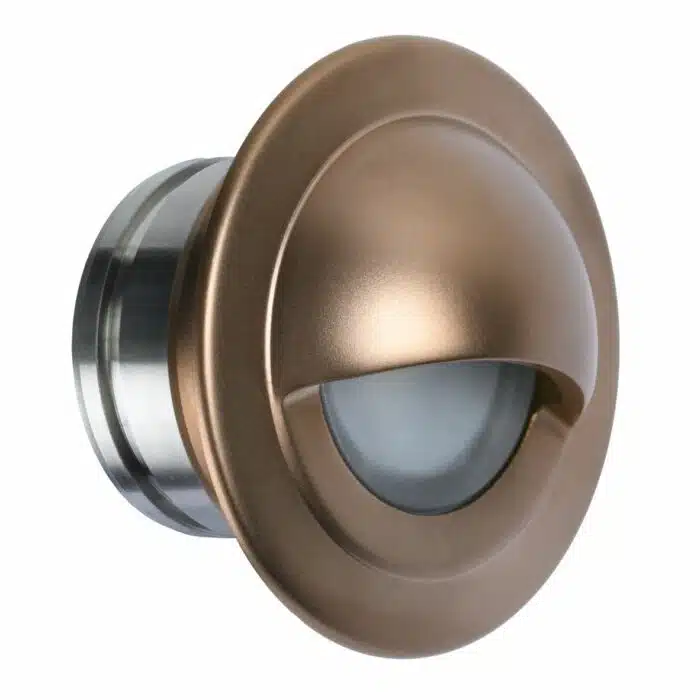

SL42-EL
Multi-LIGHTZ
Eyelid
Constant Current

Use the below graphic to assist in visualising how the selected luminaire will effect your design space

1. Select the options to the left to define your product
2. Select the room height in the text box at bottom of graphic
3. Move the slider on the left of the graphic to position the desired lux level height, i.e. for a desk at 700mm and a room height of 2400mm move the slider to 2400-700 = 1700mm
4. Select the options on the left and watch the lux levels change depending on diffuser, beam angle, CCT and driver
5. Try various combinations of the above to achieve the desired lux levels and beam spread
6. When happy with the luminaire selected, copy and paste the full product code from beneath the graphic into your specification
