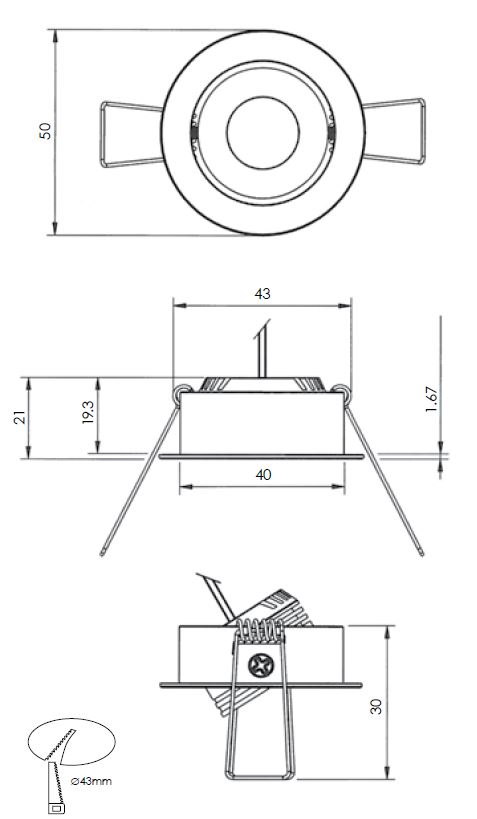

SLDL614T
30º

2.2W
dimmable
use indoors for reading / features

Power supply – constant current (ordered separately)
Max 700mA

Define Your Product

Select the options below to define your product
Please select one option from each line.
Options will remain to enable product selection.
All lines must be selected to show a product.

Light Level and Beam Generator

Usage instructions

Use the below graphic to assist in visualising how the selected luminaire will effect your design space

Select the options to the left to define your product
Select the room height in the text box at bottom of graphic
Move the slider on the left of the graphic to position the desired lux level height, i.e. for a desk at 700mm and a room height of 2400mm move the slider to 2400-700 = 1700mm
Select the options on the left and watch the lux levels change depending on diffuser, beam angle, CCT and driver
Try various combinations of the above to achieve the desired lux levels and beam spread
When happy with the luminaire selected, copy and paste the full product code from beneath the graphic into your specification
