Dali 2 Dimming Mains Driver

  • Independent dimmable LED Driver
  • Output current switchable between 180-500mA
  • Max. output power 12W
  • Up to 82% efficiency
  • Dali 2 compatible <0.2W
  • Dimming Range 1 to 100%

Define Your Product

Select the options below to define your product
Please select one option from each line.
Options will remain to enable product selection.
All lines must be selected to show a product.

Light Level and Beam Generator

Selected product: DALI IE-12D

Product Code: IE-12D

Add to My Products List
TypeConstant Current
Max Power Output12W
DimmableDali 1-100%

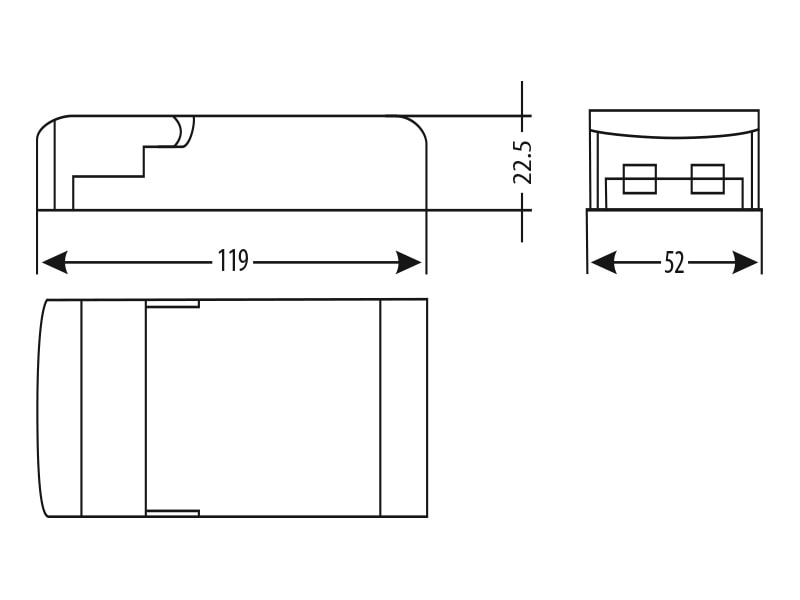

Size119 x 52 x 22.5 mm
Power Factor>0.95
Current Output (switchable)180-500mA
Voltage Output18-54V @ 180mA
18-52V @ 230mA
15-46V @ 260mA
15-42V @ 300mA
15-34V @ 350mA
15-30V @ 400mA
15-27V @ 450mA
15-24V @ 500mA
Ambient Temperatures (ta)-20°C-50°C
Max Temperature (tc)80°C
IP RatingIP20
SDoC SL1028 Driver Dali IE-12D Installation Instructions PM105 DALI (IE-12D) 12W Driver IE-12D (Dali) Spec Sheet
