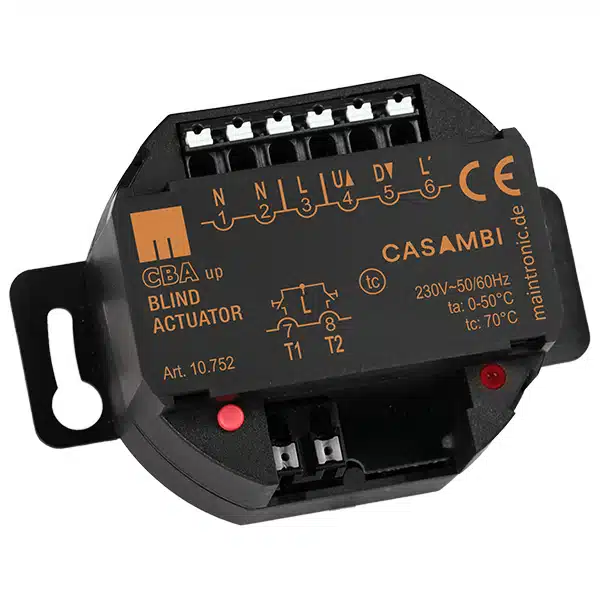

Blind Actuator for
Roller Shutters, Blinds & Awnings

Features

2x normally open contacts 16 A 230V AC
Inrush current up to 165A/20ms
Energy-saving bistable relays
Casambi enabled wireless switches
Rich timer features
Flush-mounted housing

Technical details

2 CH switch actuator
Control: Casambi
Switching type: 2x 16A / 165A inrush current
Construction: Flush mouted housing
Power supply: 130-240V AC 50/60Hz
Dimensions: 46,5 x 70(51) x 30 mm
